Specificatii:

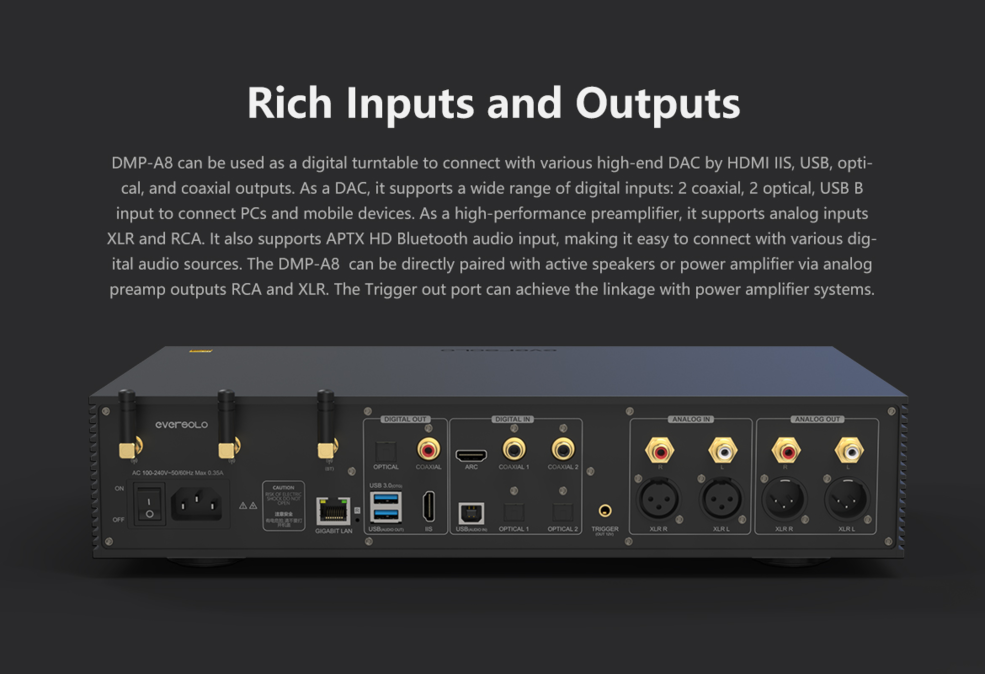

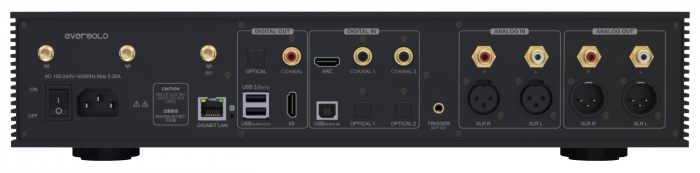

Conectivitate
Bluetooth Audio: InputBLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-B Audio: InputSupports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio: InputSupport up to stereo PCM 192KHz 24Bit, Dop64

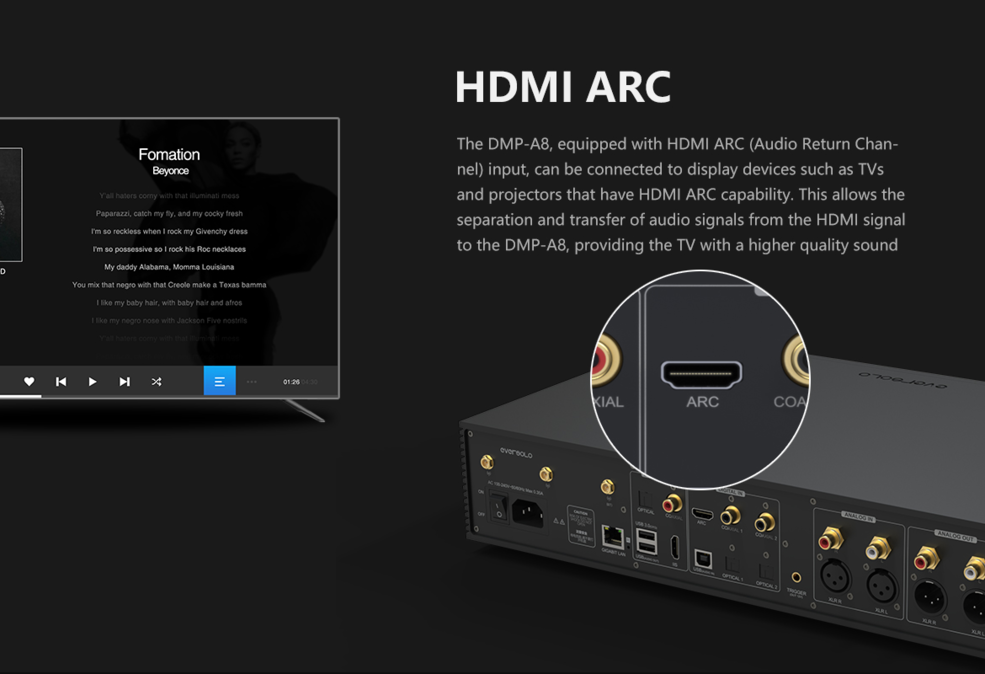

HDMI ARC: Support up to stereo PCM 192KHz 24Bit

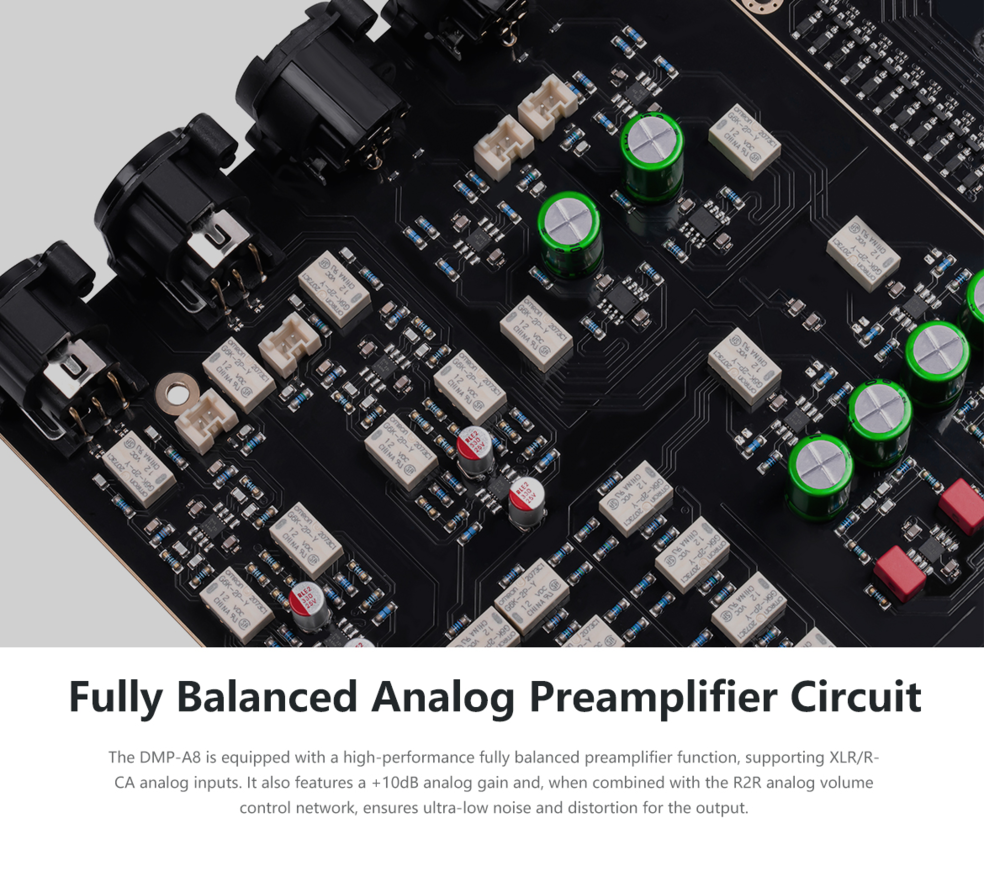

Analog preamp audio input: XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
USB Audio Output: Support up to stereo DSD512，PCM 768KHz 32Bit

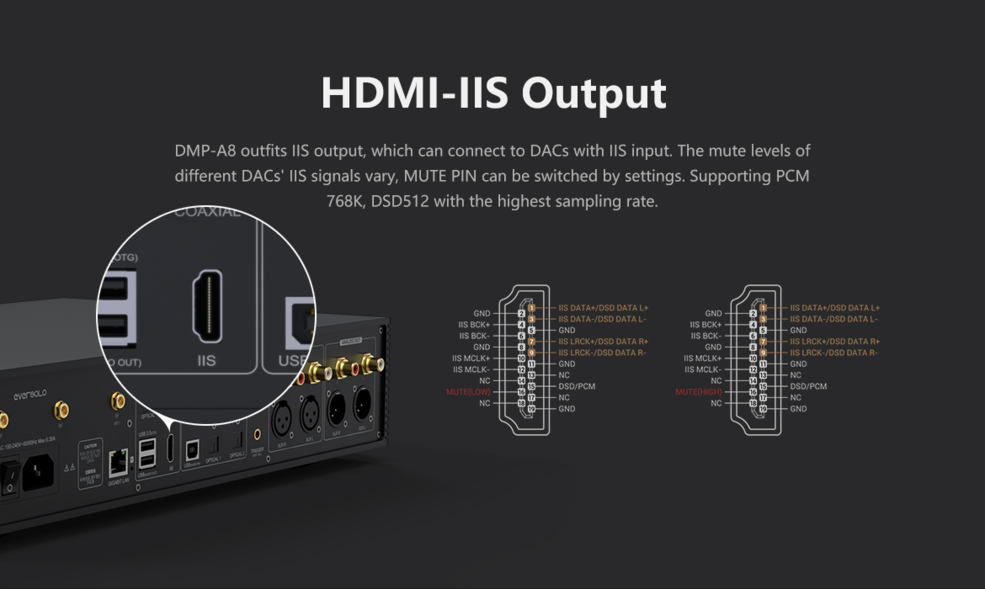

IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
Analog Audio Output: Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)

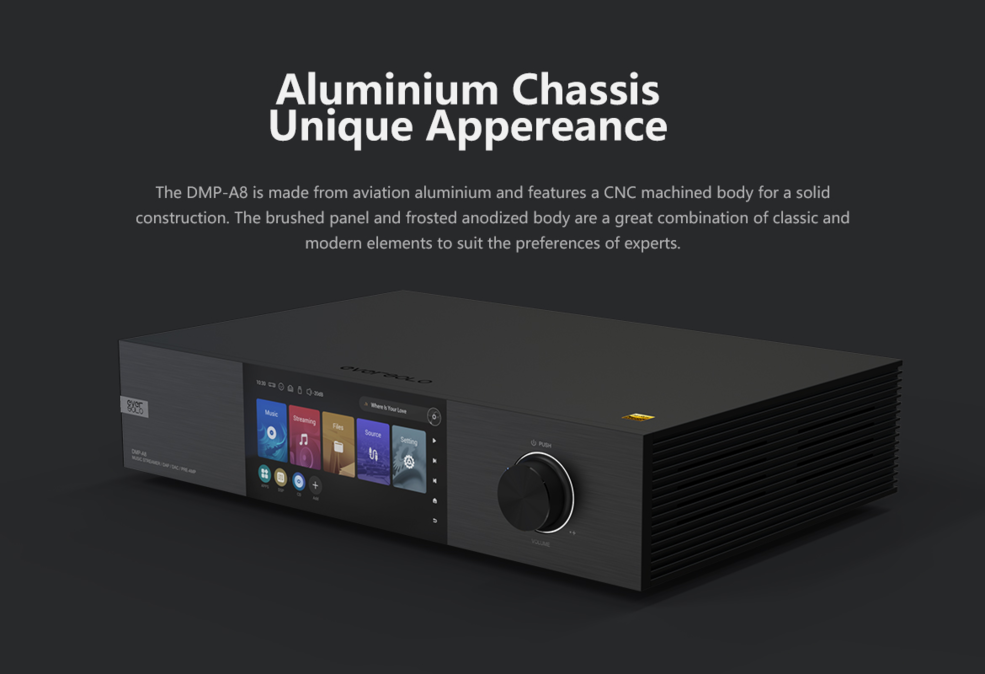

Dimensiuni
388 x 248 x 90 mm
Alte caracteristici
XLR Output Audio Characteristics:
Output level: 4.2V
Frequency response: 20Hz~20KHz(±0. 25dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @No-wt
Crosstalk: >-121dB

RCA Output Audio Characteristics:
Output level: 2.1V
Frequency response: 20Hz~20KHz (±0. 25dB)
Dynamic range: > 125dB
SNR: >125dB
THD+N: <0.00010%(-119dB)@A-WT
Crosstalk: >-121dB

Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
Streaming: Air Play, DLNA, Tidal Connect etc.

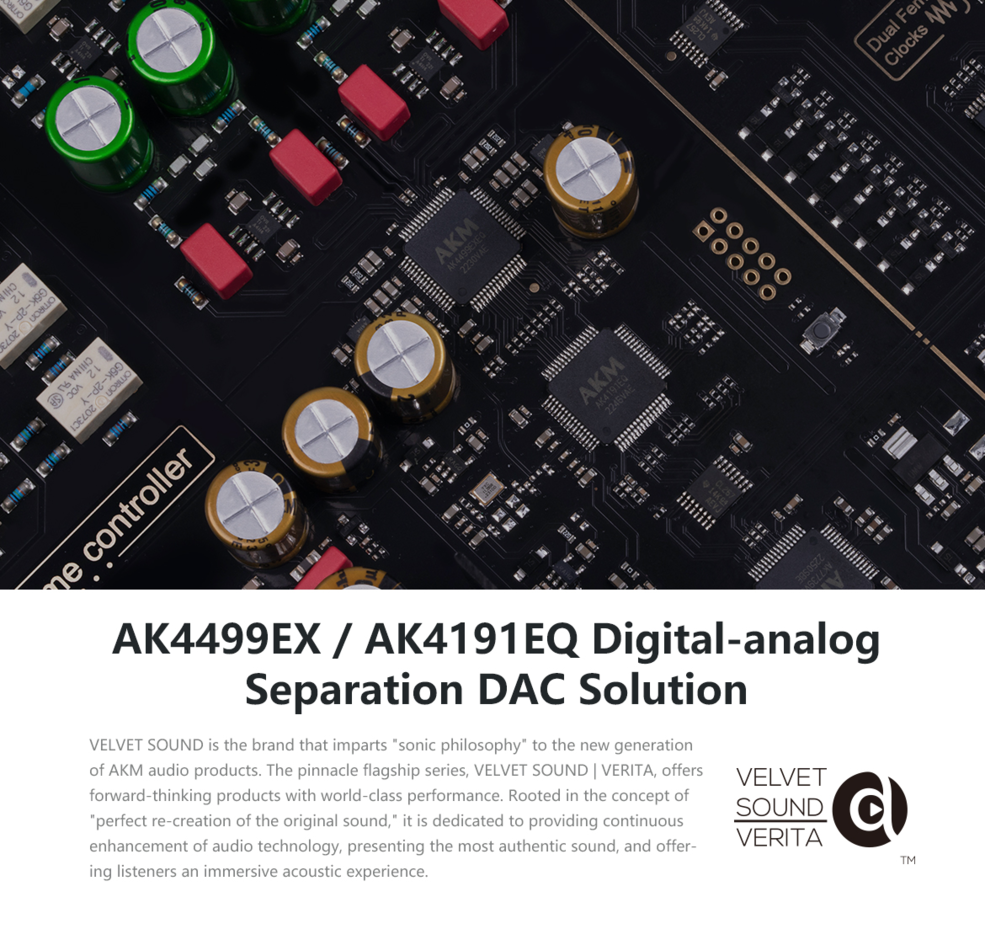

Convertor D/A
AK4191EQ+AK4499EX
